Filtration,
separation &
drainage

Modern garden design

For more than 50 years, Bidim Outdoor has boasted a wide range of high-quality geotextiles for creative garden desig, where safety and functionality equally important. Discover BIDIM Flash 10, BIDIM Green 8 and BIDIM One 4 – our range of products specially designed for dewatering and gravel stabilization.

Wide range of applications

Bidim Outdoor is the ideal choice for terraces, to prevent wobbly terrace stones. Bidim Outdoor guarantees a stable structure on paths and access roads which withstands high loads. Other areas of application are also possible.

BIDIM OUTDOOR

Functionally designed

BIDIM Flash 10

For use in areas with heavy vehicle traffic.

BIDIM Green 8

For use in areas with light vehicle traffic.

BIDIM One 4

For use in garden paths and terraces.

BIDIM Flash 10

Excellent robustness

Outstanding load-bearing capacity immediately after laying.

High water-permeability

Superior UV stability.

Optimal use

BIDIM Flash 10 is ideal for use in landscape design that features heavy vehicle traffic.

Functional and safe

Thanks to its separation, filtration, drainage, and protection properties, BIDIM Flash 10 is a flexible and safe solution for landscaping projects, depending on the specific application.

BIDIM Green 8

Easy to install

Reinforces the overall structure where applied

Built for long-lasting landscape design solutions

Optimal use

BIDIM Green 8 is ideal for use in landscape design areas with light vehicle traffic.

Functional and safe

BIDIM Green 8 stabilizes soil, sand, or gravel or gravel and prevents mixing thanks to its high filtration capacity.

BIDIM ONE 4

Quick and easy installation

Tear resistant

Improves overall soil bearing capacity

Optimal use

BIDIM One 4 is ideal for creating areas for pedestrian use, such as garden paths and terraces.

Functional and safe

Designed for soil separation and filtration, BIDIM One 4 provides lasting protection for any garden design project.

BIDIM BAMBOO STOP PRO

RESOURCES

  • Installation instructions

    Unroll the product along the length of the area to be covered to avoid excessive cutting.

    Make sure you have side overlaps of around 20 cm if the area to be covered is wider than the product.

    Draw a floor plan before laying. Choose the most suitable roll width with a few cm to spare.

    Unroll the products at a gradient from the top downwards.

    Avoid laying the product when there is a strong wind. Weigh it down if necessary.

    Drainage: the best results are obtained by placing the geotextile around the gravel to increase the filtration surface.

    Do not leave the product lying in the mud, since this reduces the filtering capacity.

    Do not leave the product lying in the sun for a long period of time.

    Applications

    A

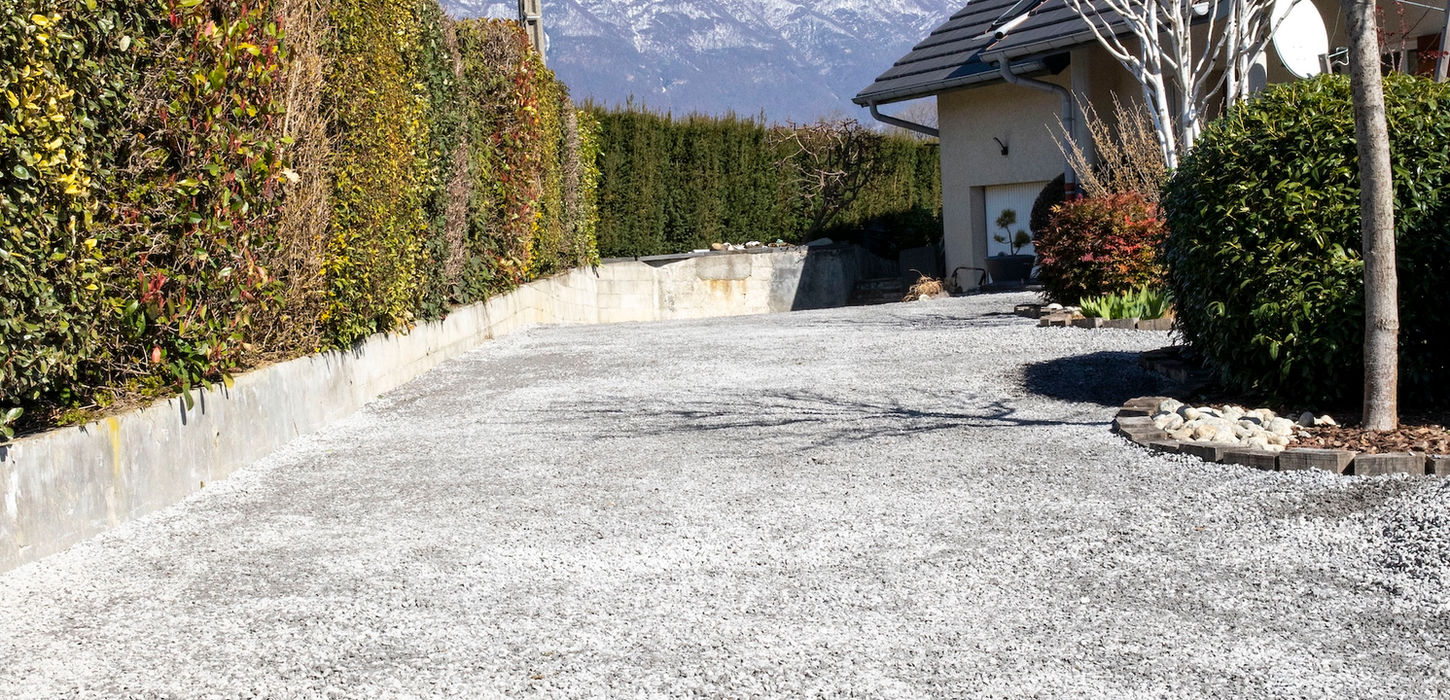

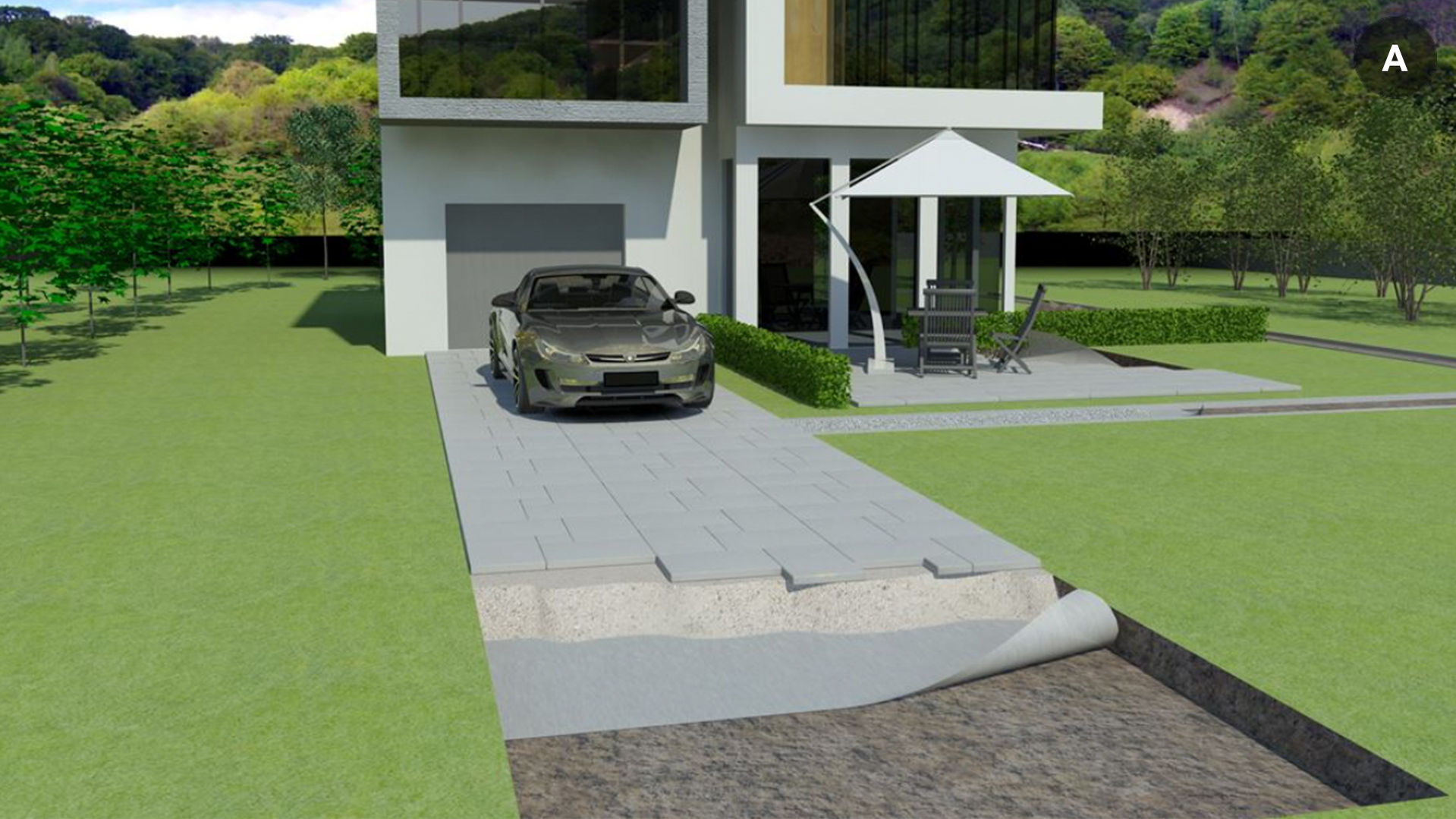

    Driveway stabilization

    B

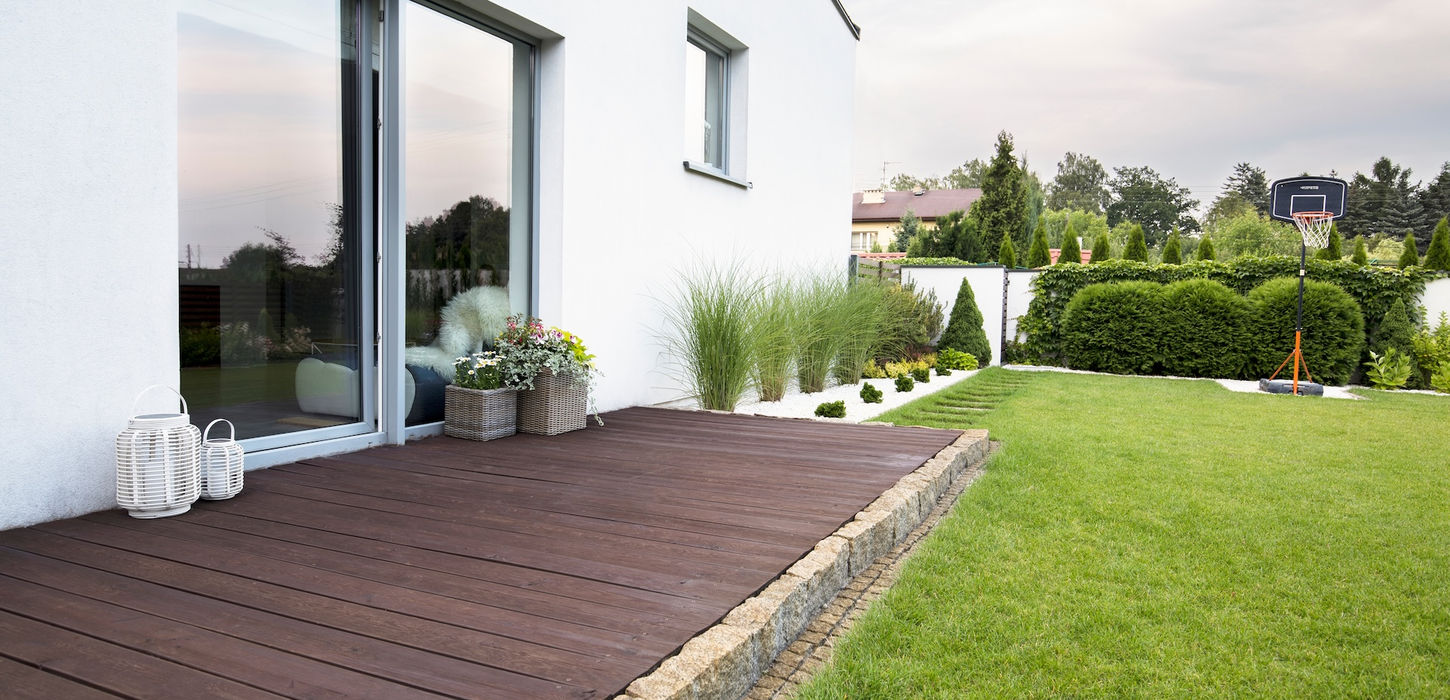

    Terrace stabilization

    C

    Drainage

    D

    Pedestrian path stabilization

  • Properties
    BIDIM Flash 10
    BIDIM Green 8
    BIDIM One 4
    for heavy vehicles
    for light vehicles
    for terraces or garden paths
    Color
    Grey
    Grey
    Grey
    Material
    100 % polypropylene
    100 % polypropylene
    100 % polypropylene
    Weight
    125 g/m²
    100 g/m²
    70 g/m²
    Thickness
    0,95 mm
    0,75 mm
    0,60 mm
    Tensile strength
    10 KN/m
    8 KN/m
    5 KN/m
    Puncture resistance
    1400 N
    1140 N
    700 N
    Durability
    100 years
    100 years
    100 years
    Size
    1x25 m / 2x25 m / 1x50 m / 2x50 m
    1x25 m / 2x25 m / 0,5x95 m / 2x50 m
    1x25 m / 2x25 m / 1x50 m / 2x50 m
    UV stabilization
    Yes
    Yes
    Yes
    Safety
    No harm for human health and environment
    No harm for human health and environment
    No harm for human health and environment
